PRODUCT OVERVIEW
Designed around the production task.
Heavy-duty size reduction for rigid plastics and production scrap, used ahead of washing, separation or pelletizing processes.
MATERIAL & PROCESS CONTEXT
Material, process and output context.
Material-specific granulation
The granulator is configured around the feed material, target particle size and the required downstream process. Knife layout, screen selection and drive sizing are confirmed for the specific application.
PET and film configurations
Dedicated configurations can be considered for PET bottles, film and rigid production scrap. Final equipment selection depends on the material form, contamination, feed method and required size reduction.
Maintenance access
The equipment layout is designed to support routine inspection, knife-service planning and practical cleaning. Maintenance intervals are determined by actual material and operating conditions.
CONFIGURATION ENGINEERING
Engineering granulation module around the actual material
A recycling system is defined from the actual feedstock and required downstream use, not from a headline model or capacity. Material condition, contamination, safety boundary and each process interface are reviewed together before a project configuration is released.
Material definition
Confirm polymer family, material form, incoming size, contamination profile, moisture, labels, metals, non-target fractions and any restricted or hazardous contents before selecting the route.
Process-route integration
The selected process interface is after feed preparation and before the selected washing or downstream stage. Each module is balanced with its upstream preparation, downstream handling and the declared target material requirement.
Utilities, residue and safety
Water management, residue handling, ventilation, access, guarding and site constraints are defined with the actual material and local operating conditions; they are not assumed from a generic reference line.
Project confirmation
The final equipment list, operating window, controls and acceptance criteria are confirmed through project engineering, controlled technical review and the agreed validation plan.
FOR A TECHNICAL PROPOSAL
Information that lets us define the right line.
- Material form, contamination, feed method, target size and downstream duty
- Clear material photos or representative samples, including packaging and contamination condition
- Required target material, downstream use and any purity, moisture or handling expectations
- Factory layout, utilities, water-treatment boundary, safety rules and local regulatory requirements
- Required controls, service access, documentation language and project delivery expectations
This v2 Beta page presents the R&D-signed technical reference for the stated material and process scope. It is not a price, delivery, quality, certification or contractual performance commitment; the final project configuration and acceptance conditions remain subject to controlled engineering review.
TECHNICAL DATA

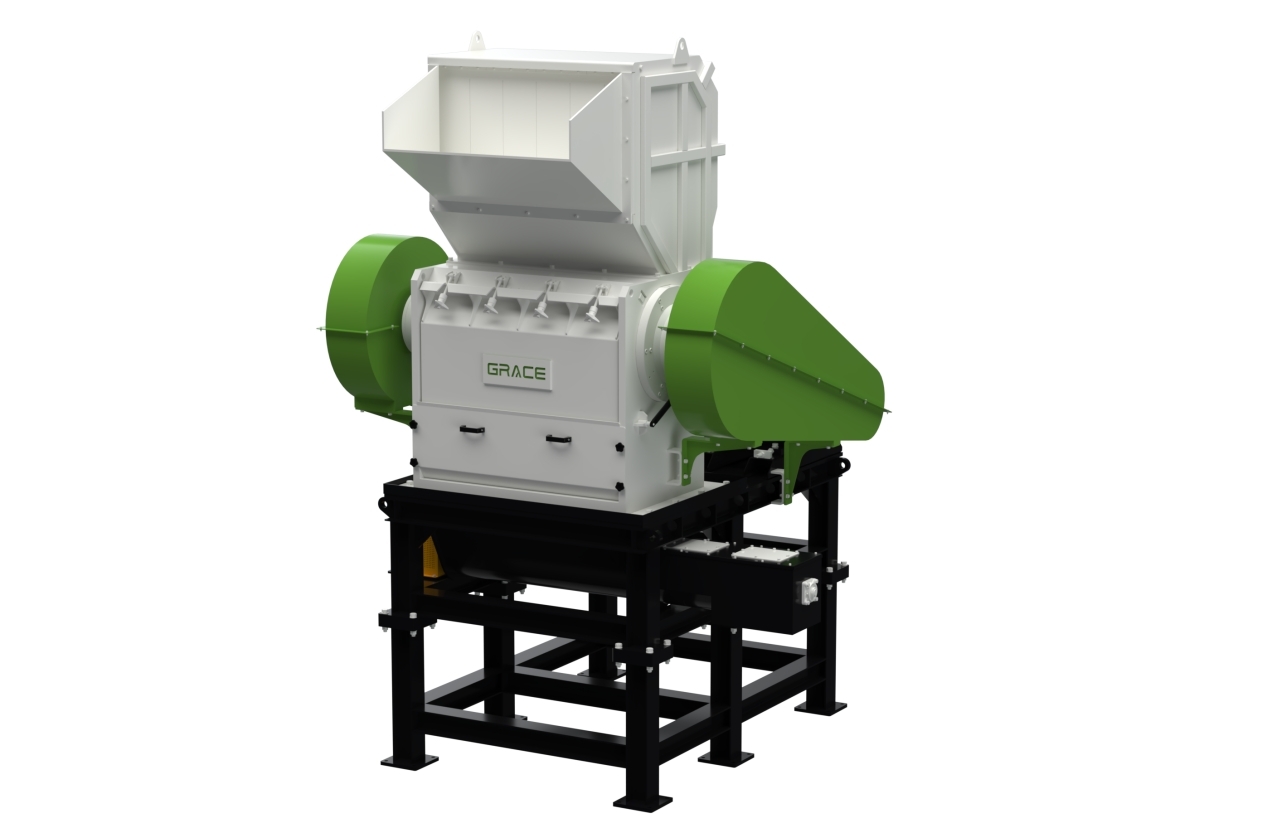

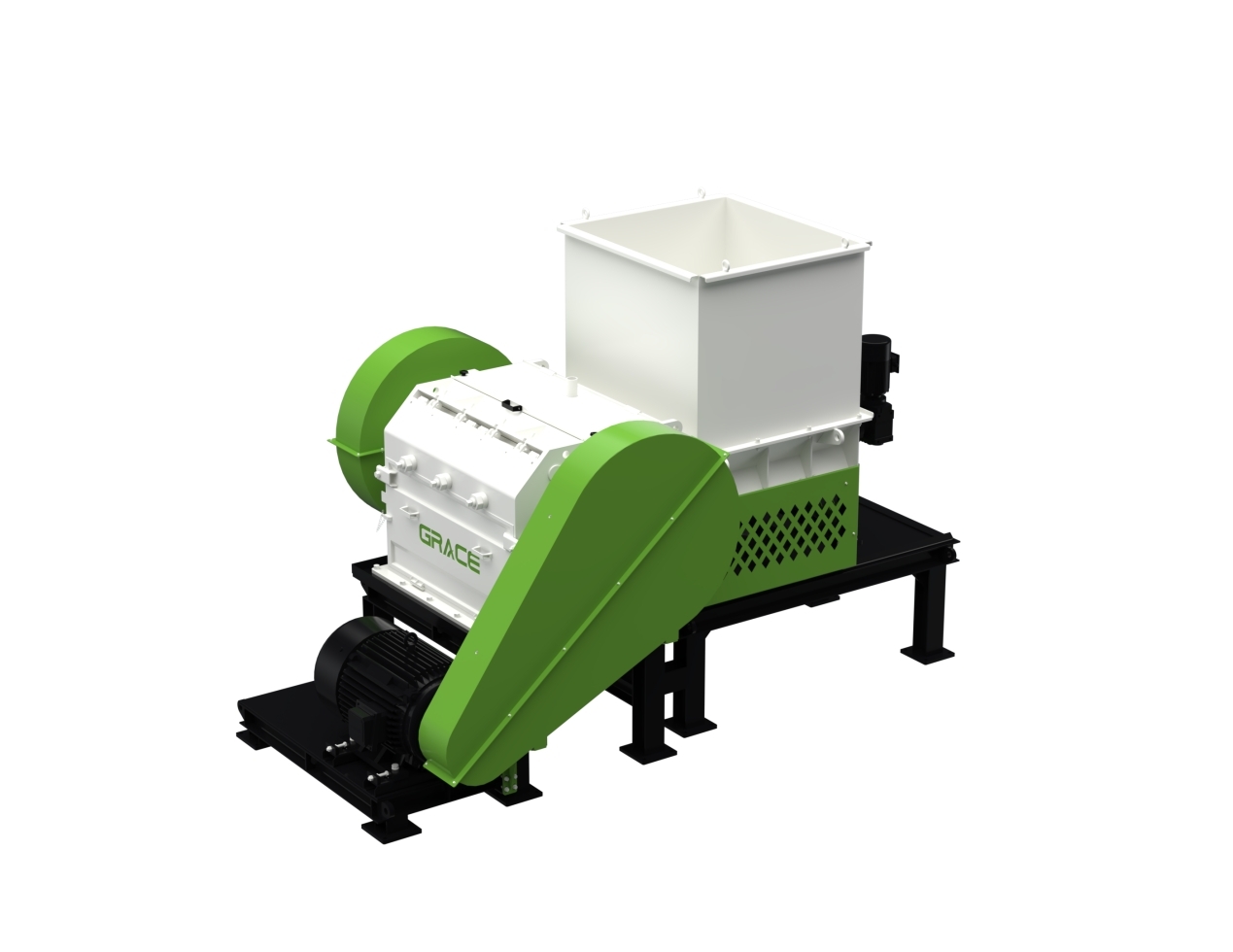

Representative granulator reference models
| Model | Primary role | Applicable feedstock / condition | Candidate route capacity range | Key standard configuration | Selection boundary |
|---|---|---|---|---|---|
| GRG800C-FS | Wet size reduction | PE/PP industrial and packaging film; silt below 5% and low overall contamination | 400–600 kg/h | 55 kW · 520 rpm · Ø520 × 800 mm rotor · 8 moving / 2 fixed knives · Ø80 mm adjustable screen | Capacity is a candidate industrial-film route reference; metal, stone and unsuitable contamination must be excluded. |
| GRG1200C-FS | Rigid-plastic size reduction | Prepared PE/PP rigid plastics; feed must be free of metal and stone | 800–1,200 kg/h | 110 kW · 480 rpm · Ø800 × 1,200 mm rotor · 12 moving / 4 fixed knives · Ø80 mm adjustable screen | Capacity is a candidate route reference; final feed condition, screen and downstream process must be confirmed. |
| GRG1200D-PET | PET wet granulation | Post-consumer PET bottles and PET flakes within the selected wash route | 3,600–4,500 kg/h line reference; no standalone rating published | 90 kW · 520 rpm · Ø660 × 1,200 mm rotor · 10 moving / 6 fixed knives · Ø16 mm adjustable screen · 1.5 kW hydraulic station · 3 × 2.2 kW forced feeders | The stated range belongs to the complete PET washing-line candidate route, not one granulator; final configuration follows material balance and project review. |
GRG800C-FS
- Primary role
- Wet size reduction
- Applicable feedstock / condition
- PE/PP industrial and packaging film; silt below 5% and low overall contamination
- Candidate route capacity range
- 400–600 kg/h
- Key standard configuration
- 55 kW · 520 rpm · Ø520 × 800 mm rotor · 8 moving / 2 fixed knives · Ø80 mm adjustable screen
- Selection boundary
- Capacity is a candidate industrial-film route reference; metal, stone and unsuitable contamination must be excluded.
GRG1200C-FS
- Primary role
- Rigid-plastic size reduction
- Applicable feedstock / condition
- Prepared PE/PP rigid plastics; feed must be free of metal and stone
- Candidate route capacity range
- 800–1,200 kg/h
- Key standard configuration
- 110 kW · 480 rpm · Ø800 × 1,200 mm rotor · 12 moving / 4 fixed knives · Ø80 mm adjustable screen
- Selection boundary
- Capacity is a candidate route reference; final feed condition, screen and downstream process must be confirmed.
GRG1200D-PET
- Primary role
- PET wet granulation
- Applicable feedstock / condition
- Post-consumer PET bottles and PET flakes within the selected wash route
- Candidate route capacity range
- 3,600–4,500 kg/h line reference; no standalone rating published
- Key standard configuration
- 90 kW · 520 rpm · Ø660 × 1,200 mm rotor · 10 moving / 6 fixed knives · Ø16 mm adjustable screen · 1.5 kW hydraulic station · 3 × 2.2 kW forced feeders
- Selection boundary
- The stated range belongs to the complete PET washing-line candidate route, not one granulator; final configuration follows material balance and project review.
Capacity figures are candidate ranges of the referenced recycling routes, not guaranteed single-machine output. Final throughput depends on feedstock, contamination, material size, moisture, screen setting, feeding, water handling and downstream process conditions.
