PRODUCT OVERVIEW
Designed around the production task.
A modular process for preparing appliance plastics for washing, separation and further material handling.
MATERIAL & PROCESS CONTEXT
Material, process and output context.

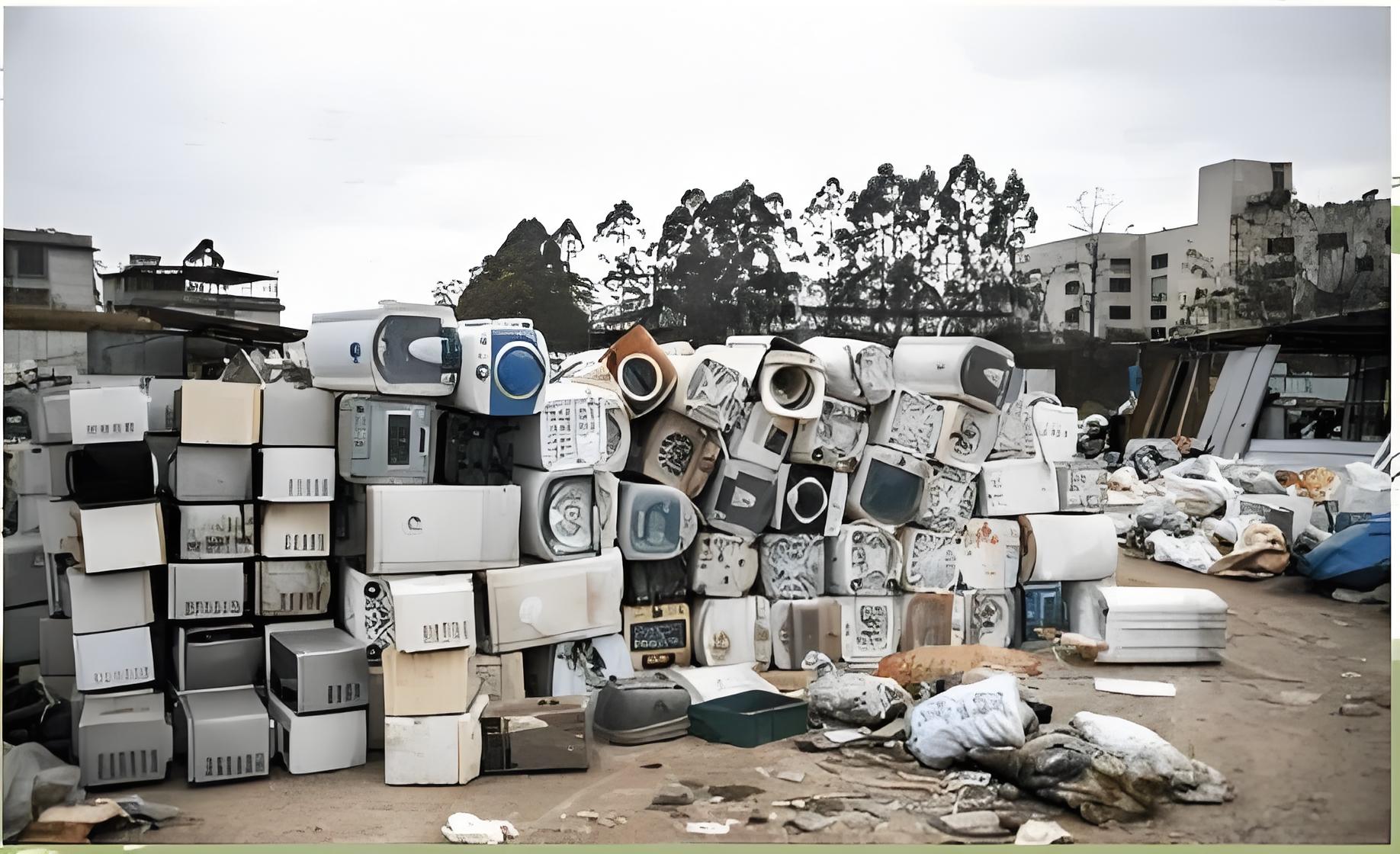

Safety-screened appliance-plastic feedstock
This route is for dismantled appliance-plastic fractions after safety screening. Batteries, pressurised parts, refrigerants and hazardous components are outside the accepted material boundary.
Sorting, washing and separation
The candidate route may combine material preparation, size reduction, washing, separation, dewatering, drying and classified collection. Any selected sorting technology follows the confirmed feedstock and target fraction.

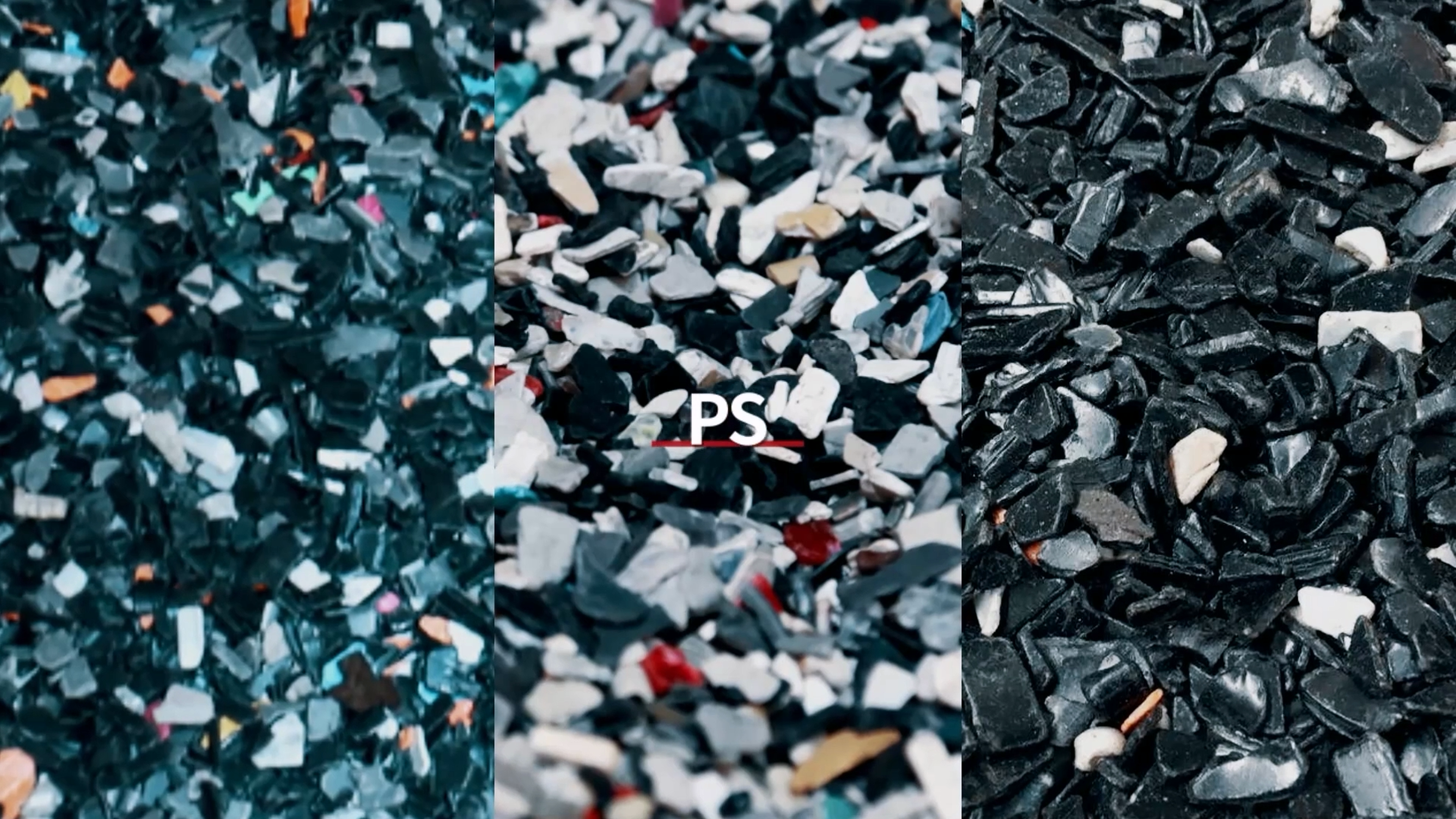

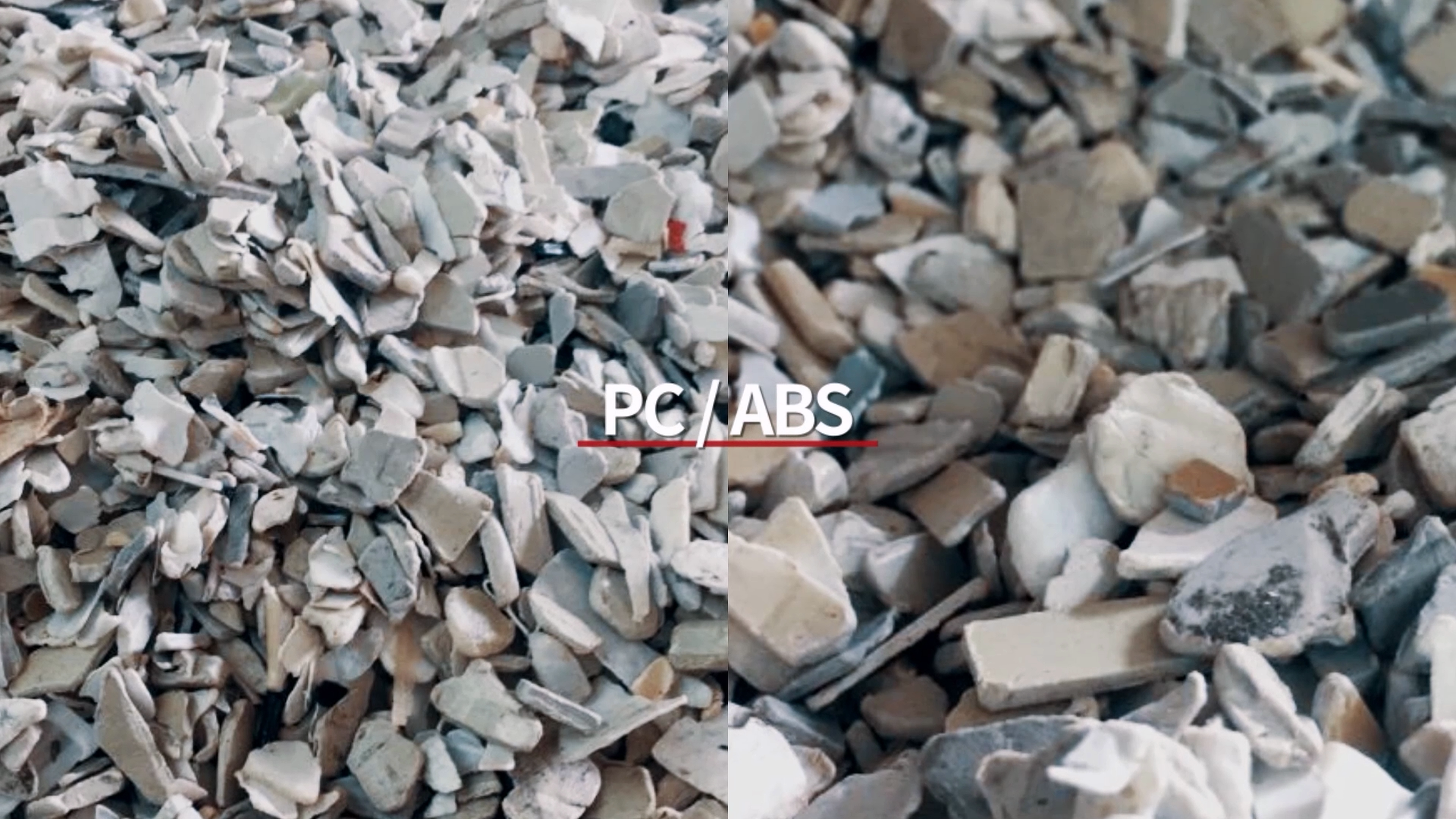

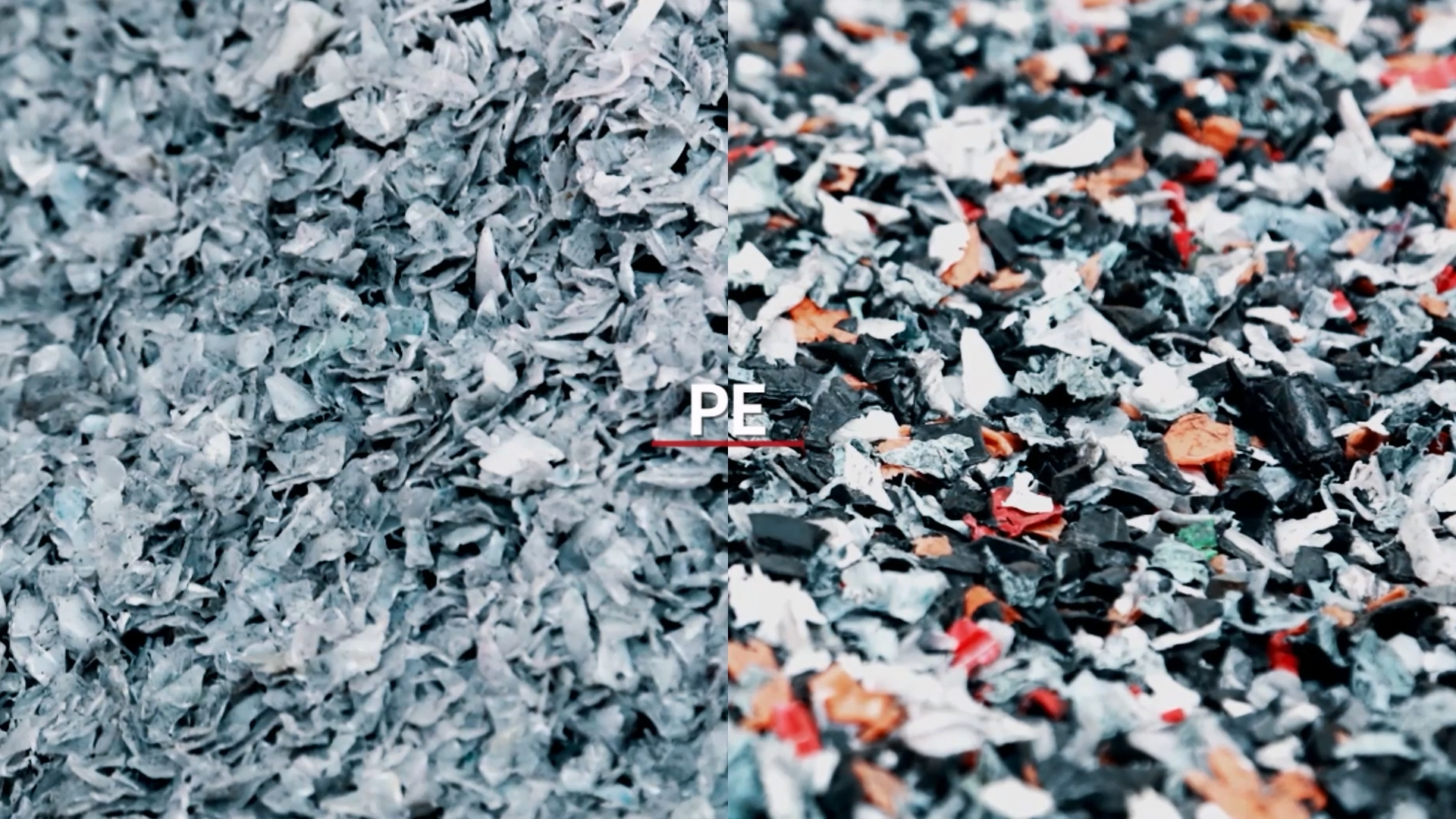

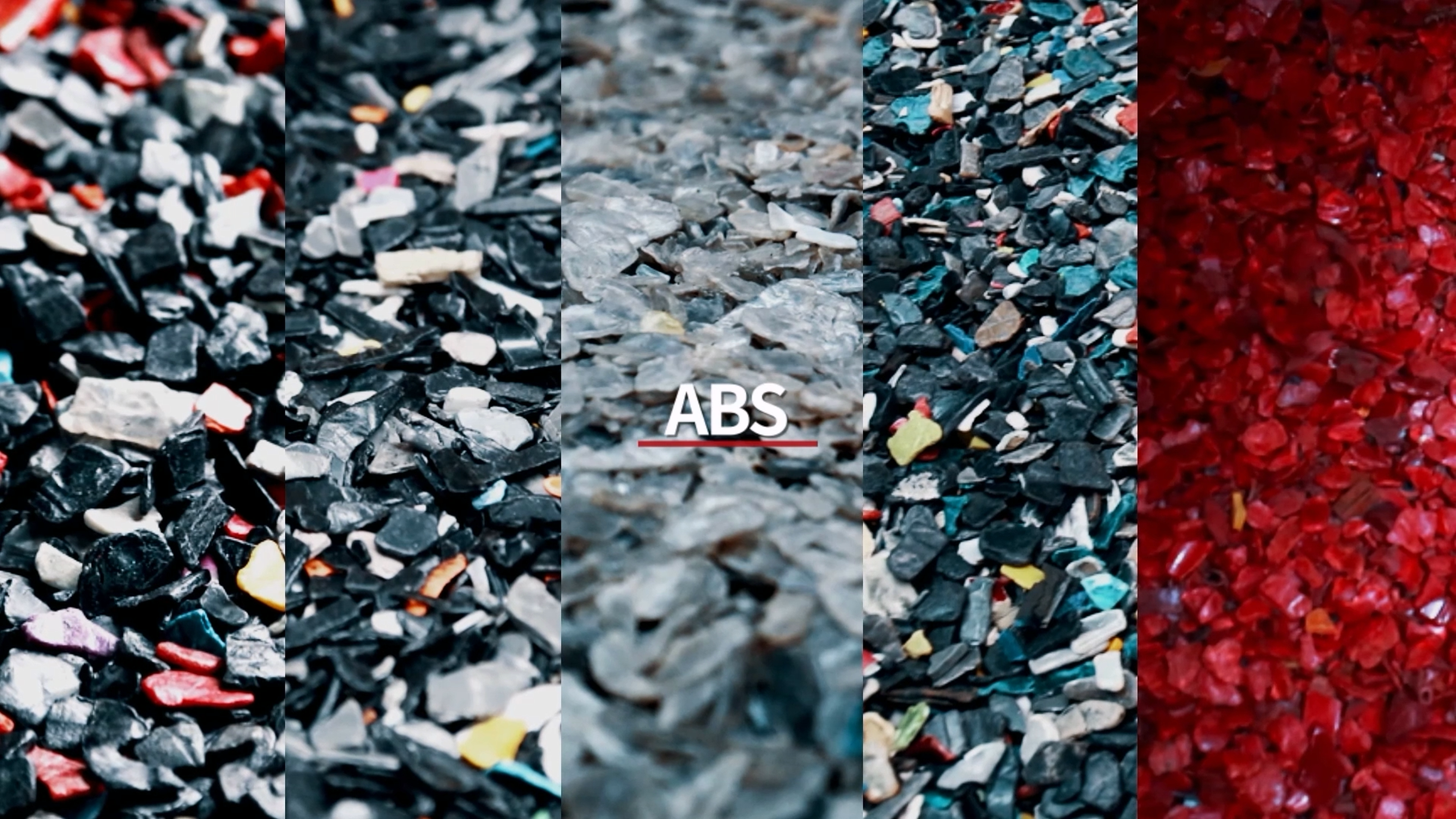

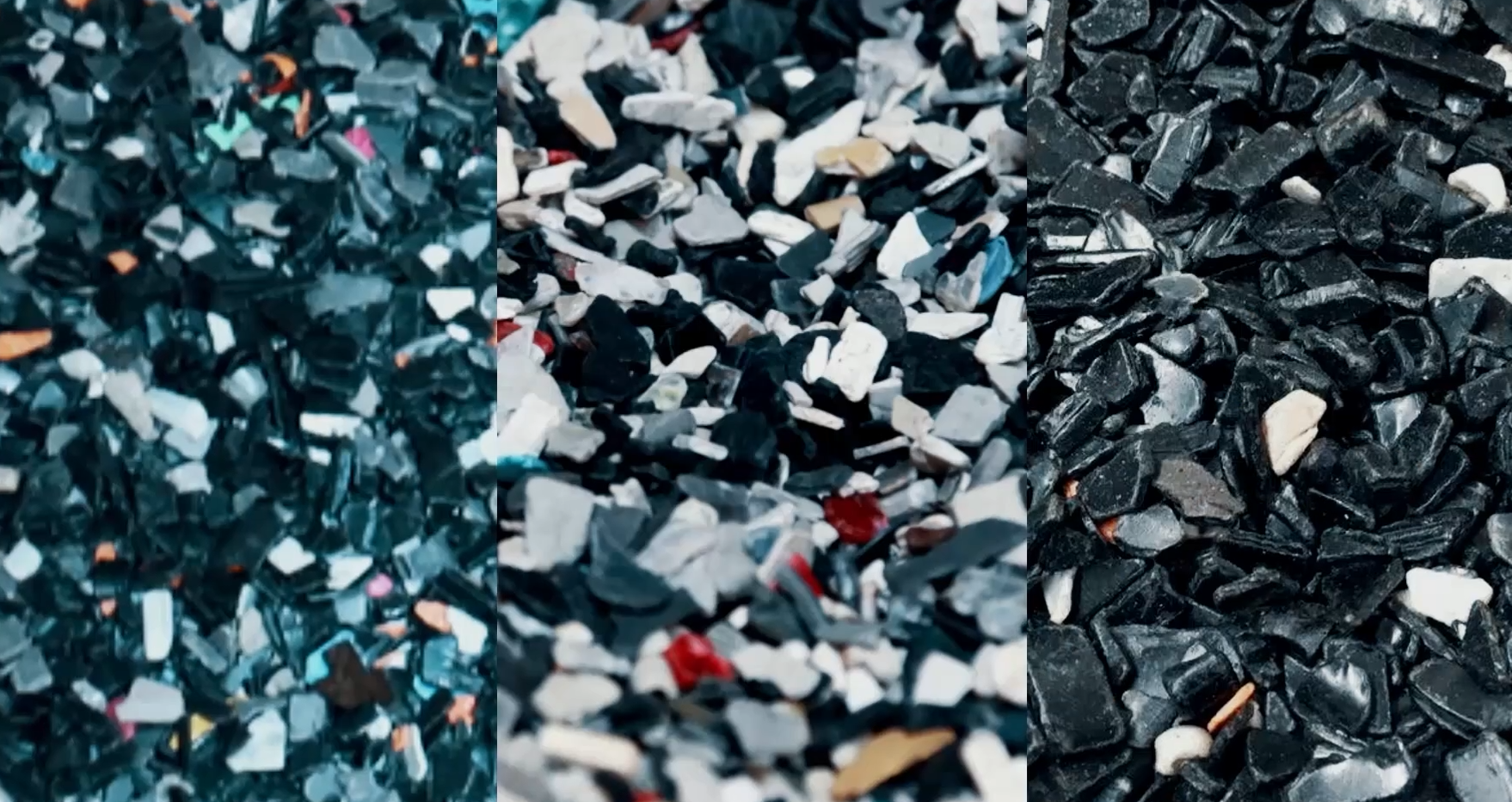

Prepared material fractions
The images illustrate possible separated material fractions after the selected route. They do not establish a universal separation result, quality level or project outcome.
Project confirmation
Flame-retardant and coated-material boundaries, target streams, utilities and final acceptance criteria require controlled project review.
CONFIGURATION ENGINEERING
Engineering appliance-plastics washing and sorting route around the actual material
A recycling system is defined from the actual feedstock and required downstream use, not from a headline model or capacity. Material condition, contamination, safety boundary and each process interface are reviewed together before a project configuration is released.
Material definition
Confirm polymer family, material form, incoming size, contamination profile, moisture, labels, metals, non-target fractions and any restricted or hazardous contents before selecting the route.
Process-route integration
The selected process interface is sorting, size reduction, washing, separation, dewatering and classified collection. Each module is balanced with its upstream preparation, downstream handling and the declared target material requirement.
Utilities, residue and safety
Water management, residue handling, ventilation, access, guarding and site constraints are defined with the actual material and local operating conditions; they are not assumed from a generic reference line.
Project confirmation
The final equipment list, operating window, controls and acceptance criteria are confirmed through project engineering, controlled technical review and the agreed validation plan.
FOR A TECHNICAL PROPOSAL
Information that lets us define the right line.
- Polymer mix, flame-retardant boundary, hazardous-component removal and target fraction
- Clear material photos or representative samples, including packaging and contamination condition
- Required target material, downstream use and any purity, moisture or handling expectations
- Factory layout, utilities, water-treatment boundary, safety rules and local regulatory requirements
- Required controls, service access, documentation language and project delivery expectations
This v2 Beta page presents the R&D-signed technical reference for the stated material and process scope. It is not a price, delivery, quality, certification or contractual performance commitment; the final project configuration and acceptance conditions remain subject to controlled engineering review.
TECHNICAL DATA
Appliance plastics washing & sorting line configuration
| Internal platform | Feedstock / condition | Internal design platform | Nominal platform | Prepared material |
|---|---|---|---|---|
| Platform 3 | Dismantled appliance plastics after safety screening; mixed fractions within the selected route | 2,800–3,200 kg/h | 3,000 kg/h | Prepared material for the selected target fraction |
| Platform 5 | Dismantled appliance plastics after safety screening; mixed fractions within the selected route | 4,800–5,200 kg/h | 5,000 kg/h | Prepared material for the selected target fraction |
Platform 3
- Feedstock / condition
- Dismantled appliance plastics after safety screening; mixed fractions within the selected route
- Internal design platform
- 2,800–3,200 kg/h
- Nominal platform
- 3,000 kg/h
- Prepared material
- Prepared material for the selected target fraction
Platform 5
- Feedstock / condition
- Dismantled appliance plastics after safety screening; mixed fractions within the selected route
- Internal design platform
- 4,800–5,200 kg/h
- Nominal platform
- 5,000 kg/h
- Prepared material
- Prepared material for the selected target fraction
Internal candidate only. The figures are design platforms, not verified performance. Batteries, pressurised parts, refrigerants and hazardous components must be removed before processing; flame-retardant and coated-material boundaries are confirmed per project.
