SEE IT IN OPERATION
PVC Pipe Dust-Free Cutter
Start with the equipment in operation, then explore the principal functions and the relevant technical configuration.
PRODUCT OVERVIEW
Designed around the production task.
Dust-free PVC pipe cutting with integrated chamfering, helping keep pipe interiors and the production area clean.
EQUIPMENT REFERENCE
Confirmed equipment, followed by the process context.

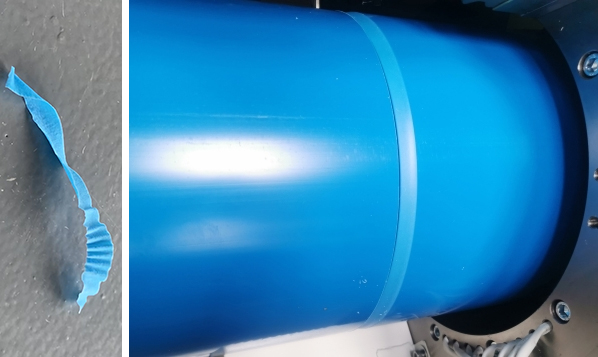

Dust-Free Cutting
The dust-free cutting process is designed to limit chips and powder at the source, helping keep the pipe interior, equipment and work area clean during production.

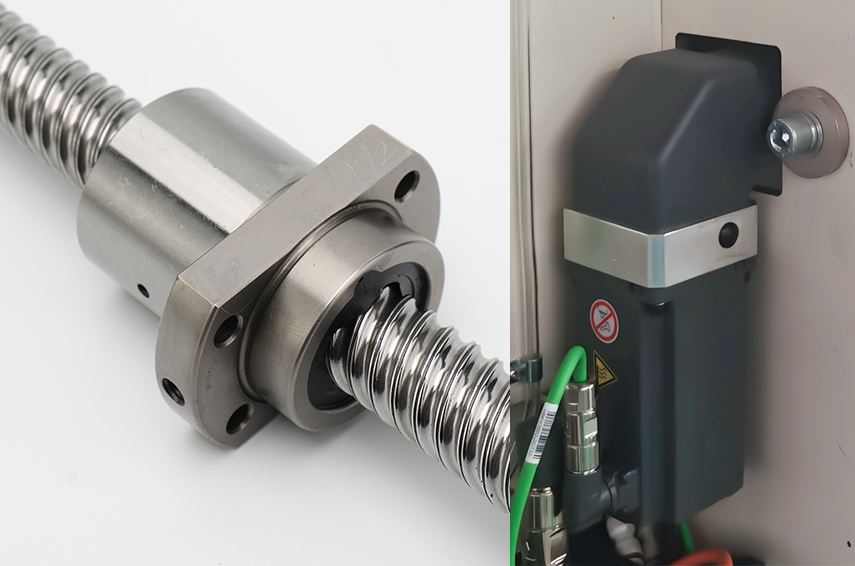

Servo-driven cutting
Servo control supports consistent cutting performance across applicable pipe sizes while providing smooth motion and dependable day-to-day operation.

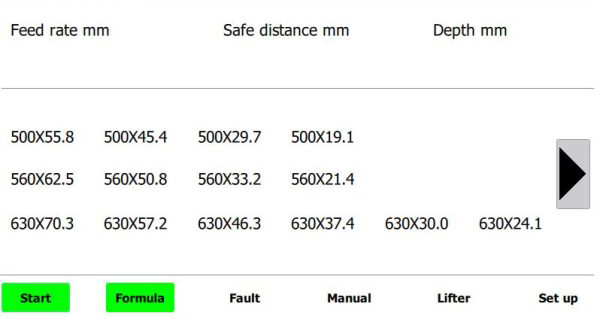

One-touch, recipe-based operation
The integrated PLC and touchscreen guide specification selection and cutting preparation, supporting straightforward operation and repeatable cutting results.
CONFIGURATION ENGINEERING
Defining PVC cutting and finishing from the finished-pipe requirement
PVC pipe cutting is configured from the pipe schedule, line speed, required length, end-face condition and downstream handling. The cutter is selected as part of the full production route, together with traction, chip collection and the required finishing operation.
Pipe schedule & cutting duty
Outside diameter, wall thickness, material condition, line speed and required cut length define the cutting duty. The complete schedule is reviewed before a cutter configuration is selected.
Clamping & cut quality
The clamping, support and cutting arrangement are selected to suit the declared pipe and end-face requirement. Chamfering, socketing or other finishing requirements are defined separately where the project needs them.
Dust & chip management
Dust collection and chip-handling arrangements are configured around the selected cutting process and factory conditions. The final scope is matched to the production environment and the required material-handling route.
Control & downstream handling
The cutting cycle is coordinated with haul-off and line controls. Collection, stacking and packing interfaces are specified around the finished-pipe length, handling method and production rhythm.
FOR A TECHNICAL PROPOSAL
Information that lets us define the right line.
- PVC pipe OD × wall-thickness schedule
- Required line speed, cut length and finished-pipe quantity
- End-face, chamfering, socketing and marking requirements
- Pipe support, collection, stacking and packing arrangement
- Factory dust-management and utility conditions
- Control interface and operational requirements
Cutting range, cycle time, edge condition and dust-management performance are verified for the selected pipe, cutter configuration and complete downstream process. They are not inferred from a product name alone.
TECHNICAL DATA
PVC dust-free cutter configuration checklist
| Selection input | Configuration response | Project confirmation |
|---|---|---|
| Pipe schedule & required cut length | Clamping, support and cutting arrangement | Confirmed against the selected pipe |
| Line speed & downstream handling | Servo synchronisation and collection interface | Confirmed with the complete line |
| End-face, chamfering & chip management | Cutting, finishing and dust-collection scope | Confirmed with factory conditions |
Pipe schedule & required cut length
- Configuration response
- Clamping, support and cutting arrangement
- Project confirmation
- Confirmed against the selected pipe
Line speed & downstream handling
- Configuration response
- Servo synchronisation and collection interface
- Project confirmation
- Confirmed with the complete line
End-face, chamfering & chip management
- Configuration response
- Cutting, finishing and dust-collection scope
- Project confirmation
- Confirmed with factory conditions
This checklist defines the technical information required to configure the dust-free cutter. Pipe range, cutting cycle, finishing quality and dust-management performance remain subject to the approved pipe schedule and complete downstream engineering review.
